Description

inverter for rv

Specification

2022 Model 1000W Pure Sine Wave Inverter
Rated Power 1000 Watt Continuous
Peak Power 2000 watt surge
Frequency 60HZ
Efficiency 90%
DC Input 12V / 24V
DC Input range 10-15v / 21-30v
AC Output Voltage 110V-120V
Low Voltage Alarm 9.5V-10.5V / 19.5V-21.5V
Low Voltage Shut Down 9V-10V / 18.5V-20.5V
USB Output Voltage 5V
Over Load Shut Off; Recover Manually
Over Voltage Shut Down 15.5v / 30.5v
Cooling Way Way Cooling fans will run when the temperature is over 122℉
Ambient Temperature 32℉-104℉
AC Outlets 2* US Standard Sockets, 2* 5V 2.4A USB Ports

Test and Review

How to choose the right inverter for your appliance?

For resistive load, please choose the inverter that continuous power is higher than the appliance's rated power. For example, if you have a 2150W electric oven, you should choose an inverter with a power rating higher than 2150W.

Resistive loads include Incandescent lamps, phone, laptop, TV, electric fan, electric blender, camera, electric kettle, Room heater, Electric iron, crock-pot, printer, toaster, oven, water heater, etc.

For inductive loads, choose an inverter that can provide continuous power three to seven times the appliance's rated power. For example, if you have a 1HP (735W) air conditioner, you should choose a 2000W or higher inverter.

Inductive loads include refrigerator, vacuum cleaner, air conditioner, electric drill, water pump, electric saw, motor, washing machines, compressor, pumps, hair dryer, microwave, etc.

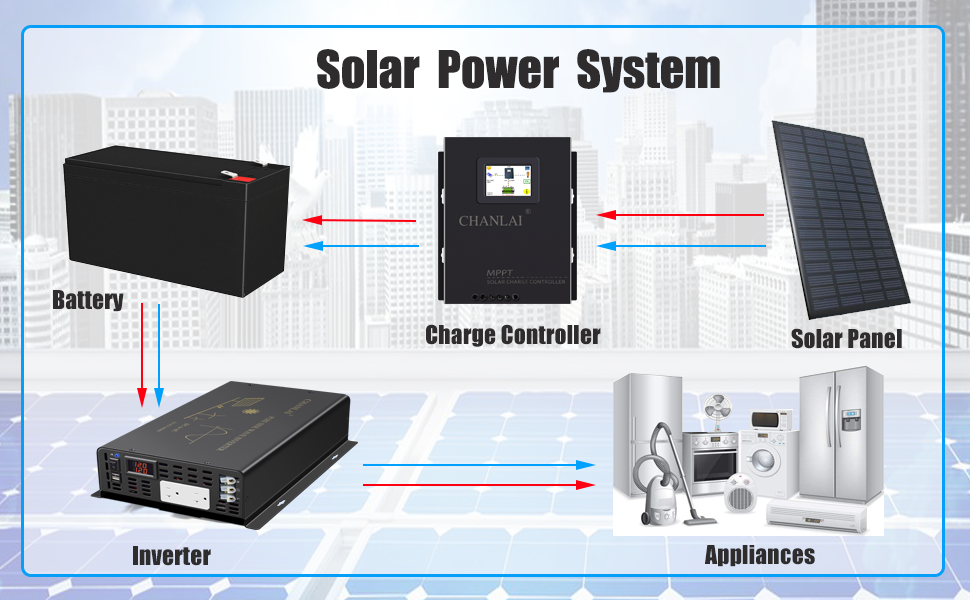

solar power inverter for camping

Package Includes


1000 Watt Pure Sine Wave Inverter

best off grid inverter

1 x

Battery Cable

battery cable

1x Set

Spare Fuses

spare fuses

Several

User's Manual

user's manual

1 x

Installation Tips

1. How can I safely add a fuse or circuit breaker between the input terminal of the inverter and the battery? What specifications are recommended?


Adding a fuse or circuit breaker between the input terminal of your inverter and the battery is a good idea. It can help protect your inverter from damage due to an overcurrent condition.The specifications you need to use will depend on the continuous power of the inverter and the lowest input voltage:

Continuous power of the inverter ÷ Lowest input voltage =Fuse ampere,  e.g.

3000W 12VDC version: recommed a 300Amp fuse (3000W÷10VDC=300Amp)

3000W 24VDC version: recommed a 150Amp fuse (3000W÷20VDC=150Amp)

3000W 48VDC version: recommed a 75Amp fuse (3000W÷40VDC=75Amp)


2. Why did sparks appear on the cable and the inverter terminal when connecting the battery to the inverter?

When you first connect your inverter to your battery, you may notice some sparks. This is normal, and it is not a sign that your inverter is malfunctioning. The inverter has built-in large capacitors, and a small amount of power is still stored inside them. When the battery cable is connected to the input of the inverter, the sparks are actually a discharge process. So don't worry, your inverter is just doing its job!


3. Why does the inverter output voltage drop continuously or even shut down automatically when running a load?

1). Check to see if you have a fuse or circuit breaker installed in your system. For example, for the 3000W 12VDC version, a 300 amp fuse is usually recommended between the inverter and the battery. If the fuse size is too small, it will limit the input current.

2). If you are using standard cables, please check to ensure that all 4 cables are used or the output will only be about half. If you are using your own cables, please make sure that they are larger than AWG 4, or thicken them if they are longer than 24 inches. This will ensure that you receive the full output from your cables.

3). Before connecting, make sure your battery system has enough capacity to support your load. For 3000 watt 12VDC inverters, choose a battery system with at least 300AH or more. When the DC LED reading drops while the load is running, your battery capacity may be too small to power the load.
